Ball Aerospace Senior Design | Antenna Ground Plane

AUGUST 2011 - MAY 2012

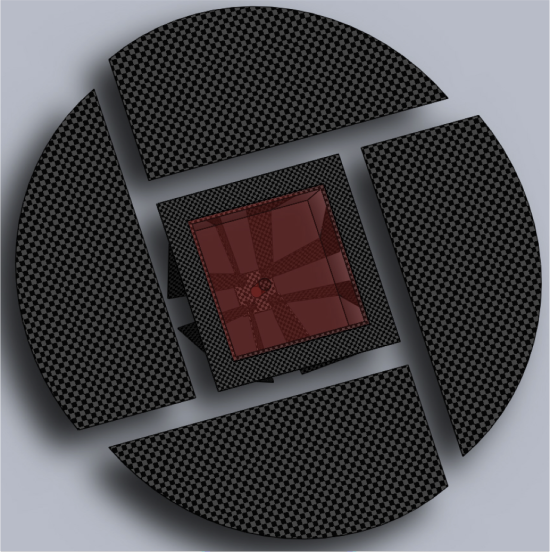

With a team of 5, I designed and fabricated an antenna grounding plane for use in Ball Aerospace antenna test ranges. Ball Aerospace requested two flat, circular planes of different diameters: 6 feet and 12 feet. Each ground plane had to be capable of supporting a 75 point antenna and weigh less than 30 pounds.
